Domestic Pumps Non-Self Priming End Suction

$11.05

Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Vestibulum tortor quam, feugiat vitae, ultricies eget, tempor sit amet, ante. Donec eu libero sit amet quam egestas semper. Aenean ultricies mi vitae est. Mauris placerat eleifend leo.

Product Description

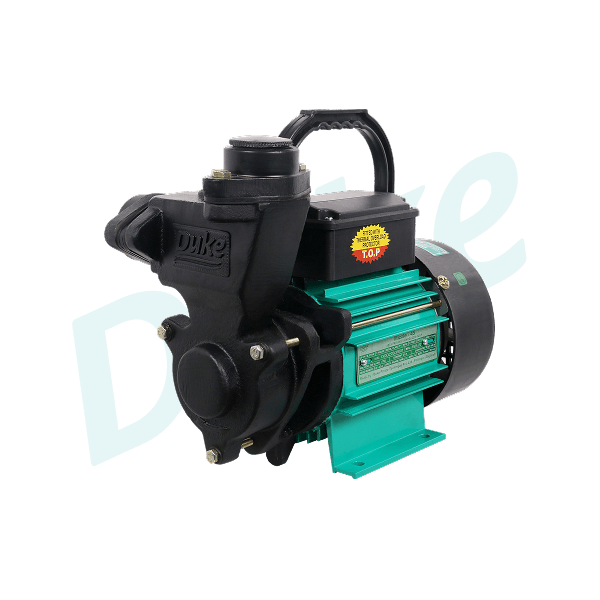

Duke’s NSP- Series pumps are miniature mono-block pumps designed for domestic and small capacity commercial applications. It accommodates peripheral impellers of brass material for trouble free operation. These pumps are handy and occupy very less space due to its simple and compact design. The inserts also made up of brass to increase the shelf-life and avoids impeller struck over a period. The dynamically balanced rotor ensures vibration and noise free operation. In-built thermal over-load protector protects the motors from electrical damages. The precise design, materials combination, manufacturing process and stringent quality assurance procedures ensure high quality performance and durability of the pump. These pumps can also be used along with pressure boosting systems for domestic applications.

Enquire Now

Technical Specification

Power Range 0.5 HP – 1.0 HP
Versions 220 V, 50 Hz AC Single Phase
Nominal Speed 2900 rpm
Max. Opearting Head 54 m
Max. Discharge 3600 LPH
Outlet sizes 1″
Type of Duty S1
Degree of Protection IP 44
Class of Insulation F

Features

  • Optimal Design
  • Precisely made parts
  • High Operating efficiency
  • NEMA mounting standard
  • Good resistance to salt
  • Hygiene
  • Durable

Applications

  • ResidentialResidential
  • GardeningGardening
  • FarmsFarms
  • FountainsFountains
  • Sprinkler systemsSprinkler systems
  • Domestic Washing systemsDomestic Washing systems
  • Domestic Pressure Boosting SystemsDomestic Pressure Boosting Systems
