6" Submersible Pumps DSP6RFN

20%

6″ Submersible Pumps DSP6RFN

$20.00

6″ Submersible Pumps DSP6RFN
Cast Iron

Product Description

Description

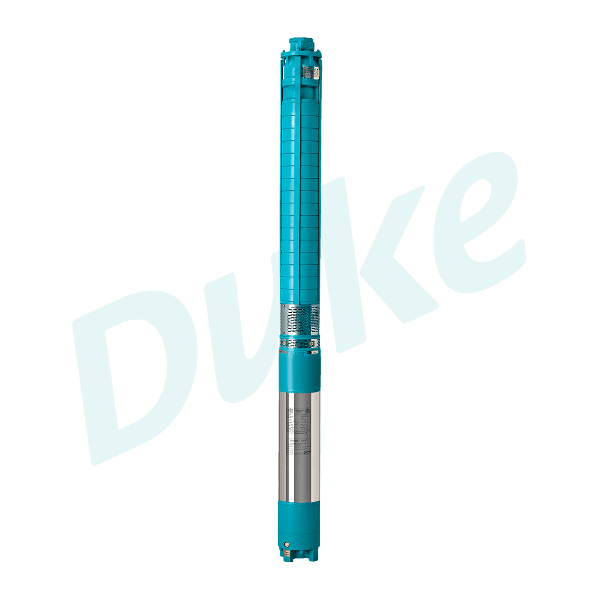

Duke’s DSP6RFN – Series pumps are 6″ Borewell Submersible pumps suitable for clear water, high head applications. The Diffusers & Impellers are made up of Noryl and the casing is cast iron. These Pumps are of Multistage Centrifugal types, accommodating Radial flow Impellers according to the required Head & Flow. The Pump & Motor are joined with Keyway coupling for easy serviceability. The precise design, materials combination, manufacturing process and stringent quality assurance procedures ensure high quality performance and durability of the pumps. These Pumps are coupled with Rigid, High-efficient, Water-filled, Rewindable submersible motors.

Technical Specification

Technical Specification

Nominal Diameter 6″ (RADIAL)
Power Range 3.0 HP – 25HP
Nominal Speed 2850 RPM
MAX Flow 20.4 m3/h
Shut-off Head 475 m
Outlet sizes 2″
Shaft Coupling Key way

Features

Features

  • Rigid Construction
  • Good resistance to sand
  • Durable
  • Optimal Design
  • Precisely made parts
  • High Operating efficiency

Applications

Applications

  • Irrigation
  • Industrial
  • General Water Supply
  • Pressure boosting units
  • Fountains
  • Gardens
  • Sprinkler systems
